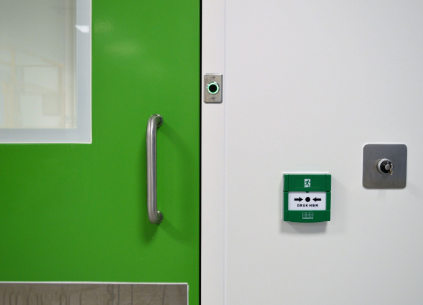

KCS Interlock system enables doors to be blocked or opened to prevent open connections between rooms. The Interlock hardware (buttons/magnets/Emergency buttons) can be integrated in wall and doorframes and is easy to program to desired configuration. The KCS interlock is suitable for any classification

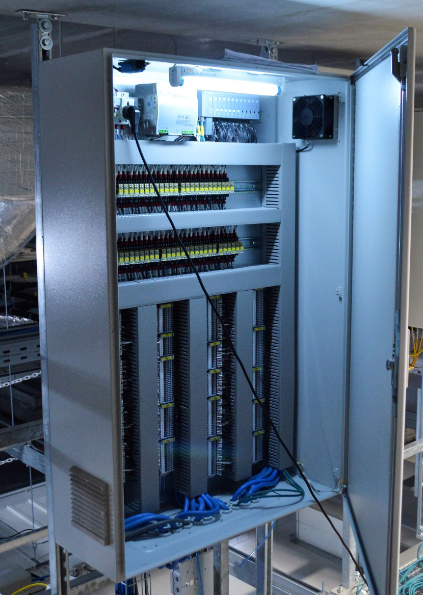

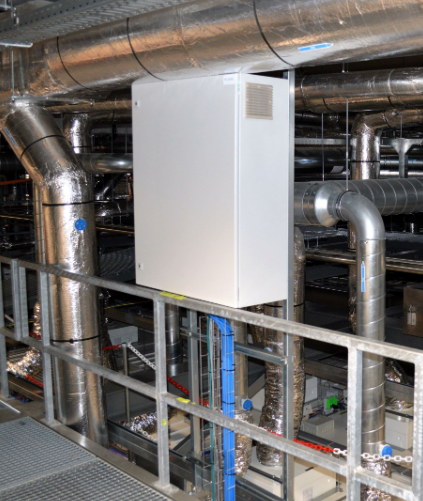

The KCS Central controlled interlock system has an PLC operated Central control box that activates all interlock systems in the project/building. Each Door is equipped with the desired hardware (activation buttons/Automatic door closers etc.) and are connected to the central PLC system. The Central PLC system has multiple options and connections to other system and can be programmed to any specific requirement. The system is able to gives all requested info to any external system (door status/operating status/Emergency button status/ao)
FEATURES
Central plc operated control box with Long and stable life-cycle
Suitable for unlimited door quantities
Pre-programmed according to the clients requirement
Easy to combine with automatic door closers, card readers, sliding doors
Safe emergency system
Connections to Scada/BMS/Fire alarm/Hvac controls/ao
KEY TECHNICAL DATA
| Activation options: | Push button/No-touch button/ao. With integrated signal light |
| Lock options: | Magnet/Pinlock/Electrical lock |
| Emergency: | Emergency push button Overrides local or total system |
| Input voltage: | 220-240v |
| Output voltage: | 24v |
| Connection to: | BMS/Fire alarm/HVAC controls |
OPTIONS
Signal alarms (door open too long)
Countdown clock (intergrated)
Various activation control options (card reader/fingerprint/eye scan)
