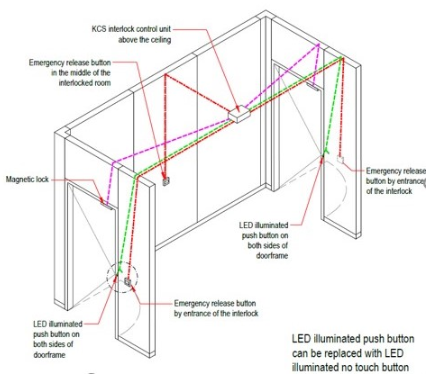

KCS Interlock system enables doors to be blocked or opened to prevent open connections between rooms. The Interlock hardware (buttons/magnets/Emergency buttons) can be integrated in wall and doorframes and is easy to program to desired configuration. The KCS interlock is suitable for any classification
The KCS Local controlled interlock system has and individual control box near every system. Each Interlock system operates individual and therefore reduces vulnerability. The stable system is PLC controlled and easy to program to any desired configuration.
FEATURES
Local Stand-alone unit with Long and stabile life-cycle
Suitable up to 5 doors per local system
Plug and play system easy to install
Flexible to use in any environment
Easy to combine with automatic door closers, card readers, sliding doors
Safe emergency system
Programmable local control box
KEY TECHNICAL DATA
| Activation options: | Push button/No-touch button/ao. With integrated signal light |
| Lock options: | Magnet/Pinlock/Electrical lock |
| Emergency: | Emergency push button Overrides local system |
| Input voltage: | 220-240v |
| Output voltage: | 24v |
| Connection to: | BMS/Fire alarm |
OPTIONS
Signal alarms (door open too long)
Countdown clock (intergrated)
Various activation control options (card reader/fingerprint/eye scan)
