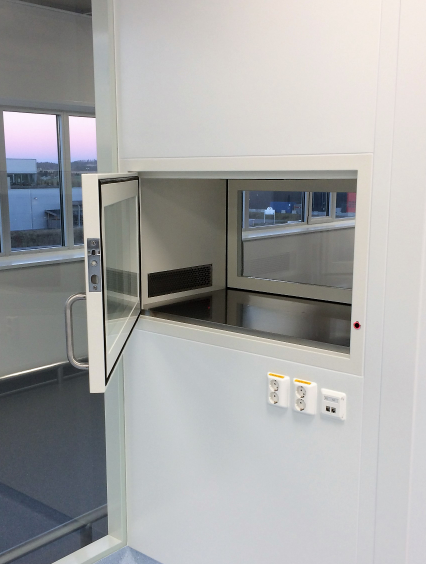

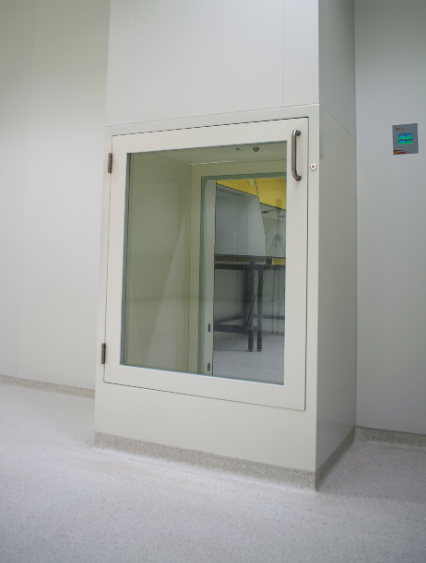

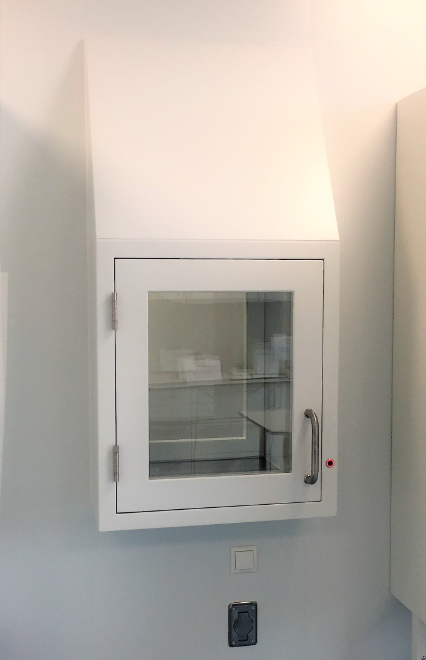

The KCS pass through box is an easy to use to pass through box to help materials and products transfer between rooms without cross contamination.
The KCS pass through boxes-passive are made to any requested measurement and requirement. With a fully smooth finish on the in- and outside combined with multiple options in finish and features the KCS pass through box fits any requirement.
FEATURES
Build to any measurement or requirement
Flush double glazed windows with SS door hardware
Integrated interlock between doors
High resistant flush Steel finish on inside and outside
Multiple features (Stainless steel finish/full glass doors/round corner finish)
Possible to fully integrate in KCS wall systems
KEY TECHNICAL DATA
| Size: | Any size available |
| Power input: | 220-240V |
| Power output: | 24v (for Interlock function) |
| Activation | Push button or No-Touch button Integrated signal function |
| Lock | Pinlock or magnet |
| Interlock | Programmable delay-relock-recovery time |
OPTIONS
Stainless steel surface inside and outside
Round coving finish inside box
3 doors in 1 pass through box
Certified Fire rated section 30-60 min.
Integrated HEPA filter box incl. DOP test connection
Integrated air return in walls or overflow grill (adjustable)
Integrated (UV-)lighting and/or UV filtered glass
