KOMPA PRO is the complete new electric doorcloser with driver and sliding arm both concealed in doorframe. No external obstacles anymore and sliding arm flush in doorframe. The newest material specs and advanced automotive technology have created a full maintenance free product. It has been developed by R&D team of IPCO (Innovative Products Company) and is an absolute unique product. This product solves the hygienic problems of present doorclosers in Healthcare, Pharma and Biotech. With its precision technology and long intensive testing KOMPA PRO can guarantee the long term maintenance free operation.
ULTRA HYGIENIC AND SILENT

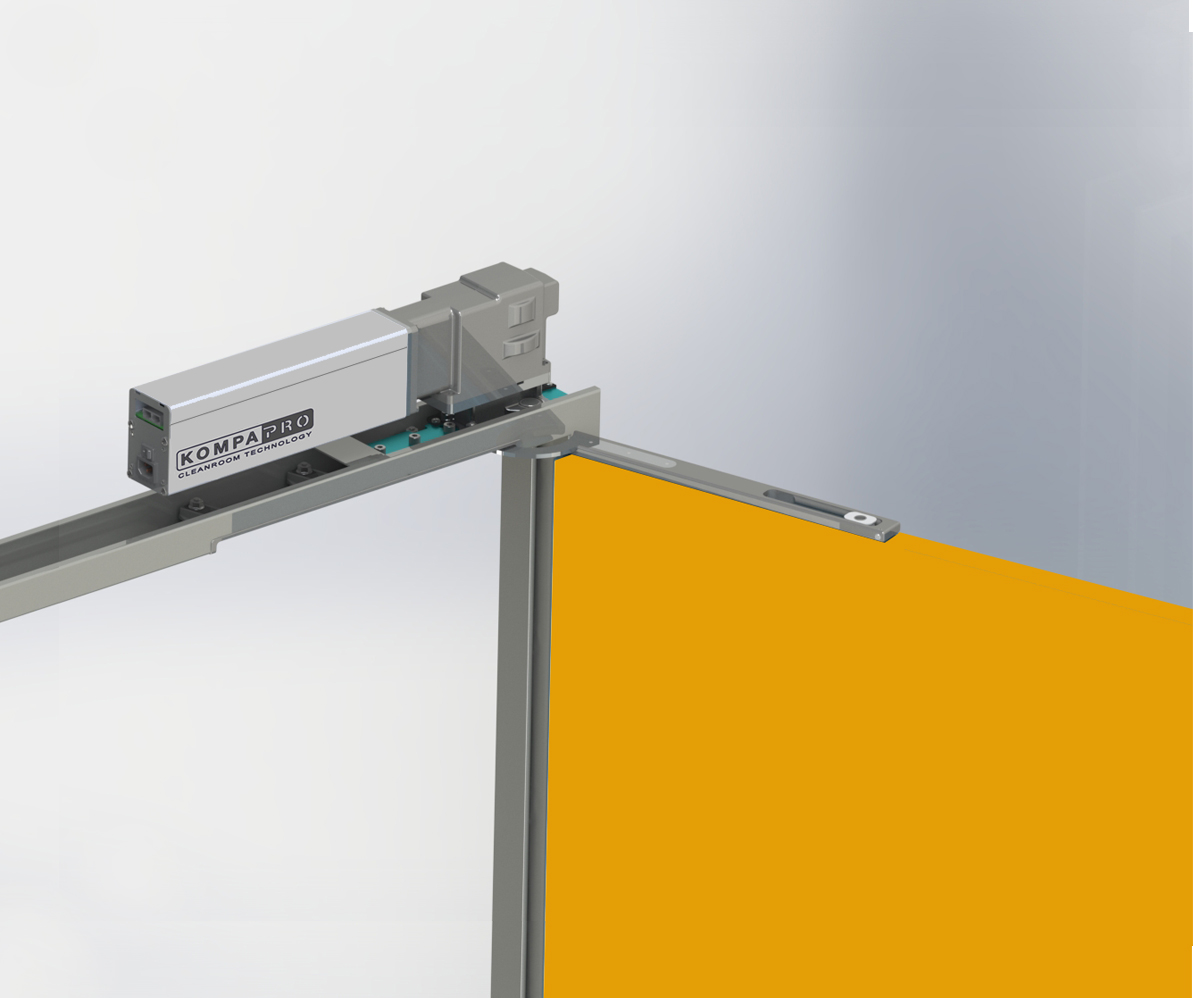

Driver incl. motor fully concealed inside doorframe invisible from outside

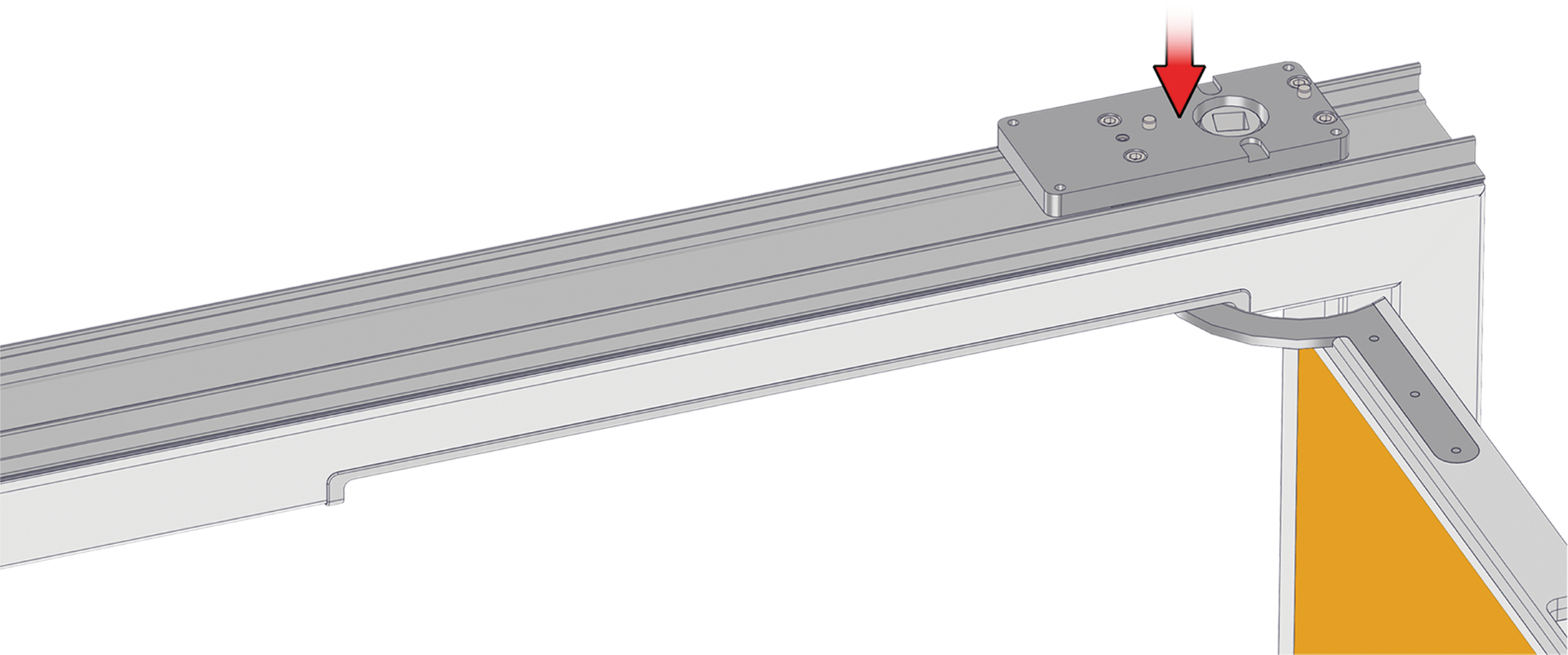

Sliding arm absorbed in doorframe with flush finish when closed
No sliding parts inside doorleaf but sliding nut in easy cleanable profile

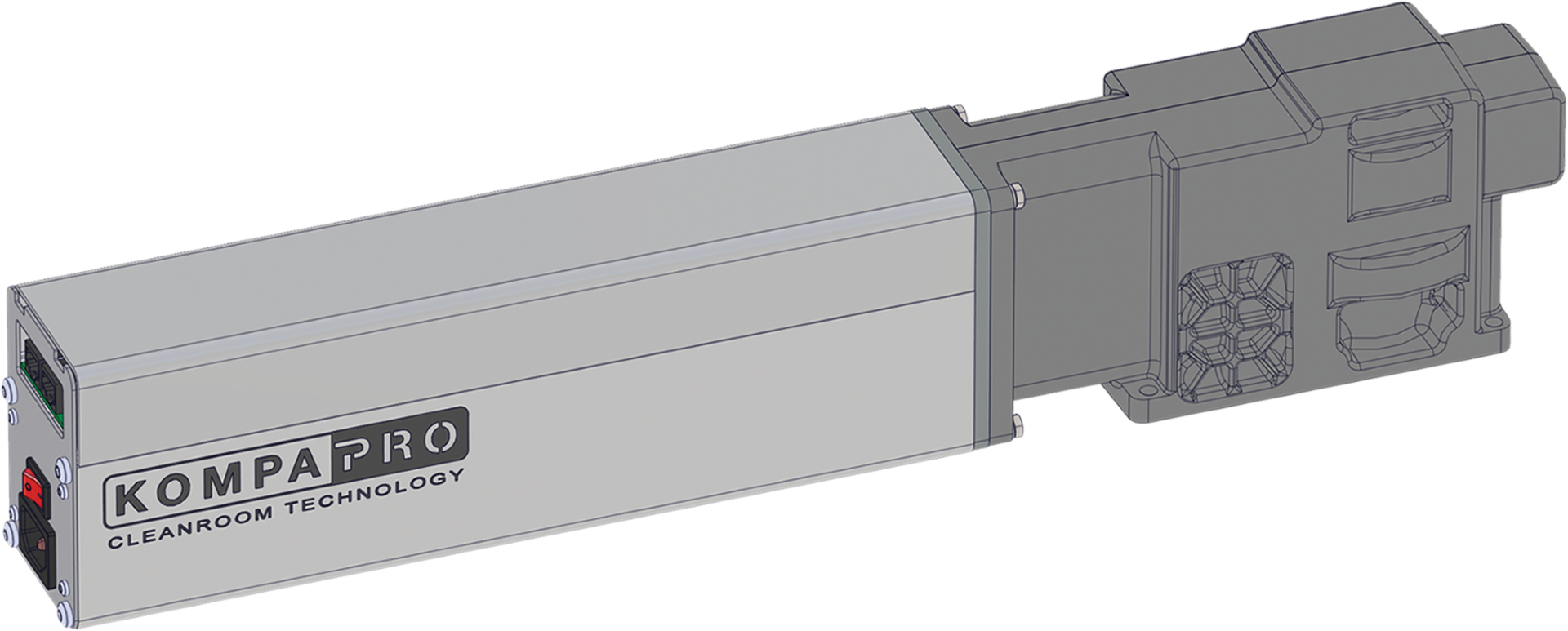

Maintenance free driver with complete silent operation
Nowhere outside obstacles needing special cleaning and maintenance
CONTROL SYSTEM
KOMPA PRO electrical doorclosers allow interface with external systems, like BMS, interlock and sensors. Control system contains software with plug-and-play application. This facilitates easy programming for any environment. Easy plug connection to control system at push button
SAFETY
KOMPA PRO doorclosers comply with all safety regulations. The control system has been programmed to maintain different safety protocols like blocking the door in case of obstacles. Also when traffic would appear in the opening the sensors would pick up the signal to prevent any damage to persons or materials. The final closing will be reversed at once by any blocking. The control system will be guaranteed safe for all types of use.
INSTALLATION
KOMPA PRO electric doorclosers can be installed in any wall system over 80 mm width. Cable connection will run from driver on top of doorframe to push buttons. Behind push buttons USB connector is present for direct connection to control system for adjusting certain program parameters when needed. KOMPA PRO doorclosers can be installed after installation of doorframe. Power connection can come from any side depending on site conditions.
KEY TECHNICAL DATA
| Required operating conditions | |
| Manufactured based type | Netherlands [COM.5.6] |
| Ambient temperature | 0 ℃ to +40°℃ |
| Environmental conditions | Relative humidity max. 90% non-condensation |
| Power supply | 230 AV+/- 10% 50Hz |
| Max. power consumption | 150W |
| General specification | |
| Class of protection EN-60529;2003 | IP 20 |
| Doorcloser operator dimensions (W x H x D) | 576 x 115 x 88 mm |
| Output mechanism dimensions (W x H x D) | 550 x 79 x 99 mm |
| Doorcloser operator weight | 10 kg |
| Output mechanism weight | 3 kg |
| Power supply for external accessoires | 24V DC +/- 10% 0,5A |
| Max. opening angle | 11 2° |
| Max. door energy | 1.69［J］ |
| Opening and closing ad丿ustable speed | 20,1 to 37,5 [deg/s] |
| Closing force continuously adjustable | 13 to 32 [Nm] |
| Designed for compliance with EN standards | EN-16005:2013 |
| Operating with over ressure condition | 0 to 35 Pa |
| *When door close overpressure electromagnet is required | |
SECTORS
1. PHARMACEUTICAL
2. BIOTECH
3. HOSPITALS
4. FOOD INDUSffilES
5. OTHER HYGIENIC FACILITIES
