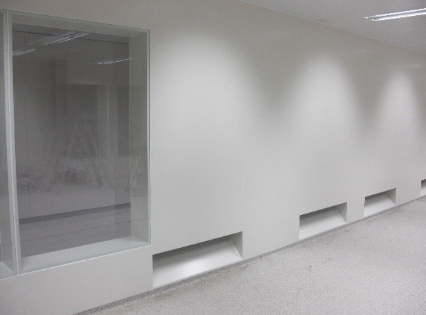

The KCS air return walls (LLE) consist of the Flex wall structure.
This structure allows to integrate the Low Level air Extract units (LLE) to be fully integrated in any KCS wall system at any location and panel selected.

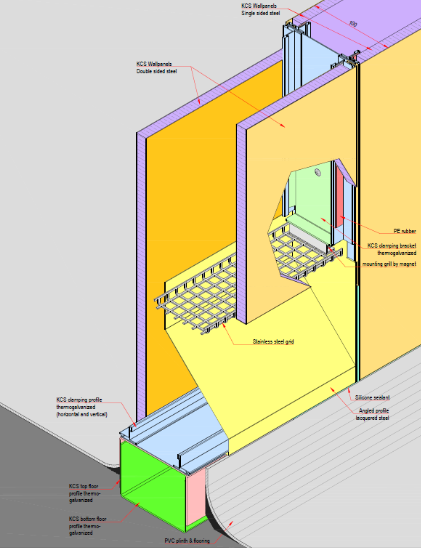

The LLE has an easy cleanable sloped finish and is protected by a hidden stainless steel grill with easy demountable magnet connection for cleaning. The inside of wall shaft is cladded with steel cover and airtight finished with silicone. The air return hood through ceiling opening at topside is mechanically airtight and flexible to any (flexible) connection of HVAC system.
Since KCS Flex walls are flexible to thickness any air return capacity can be adopted in wall system satisfying the air balance inside the cleanrooms.
Suitable for any grade or classification
Fully integrated in any KCS wall systems
Sloped finish for better air flow, hygiene and esthetics
Magnetic click in SS-grill for easy cleaning
Any size or thickness available
Connection to HVAC by air-return hood above ceiling
| Surface: | High resistant coated steel (As surrounding walls) Various surface options available |
| Width: | Module size 1200mm Any size available |
| Height: | Follows height in cleanroom |
| Thickness: | module size 100mm Any size available |
| Dust connection: | By Air return hood above ceiling Any ø duct connection available |

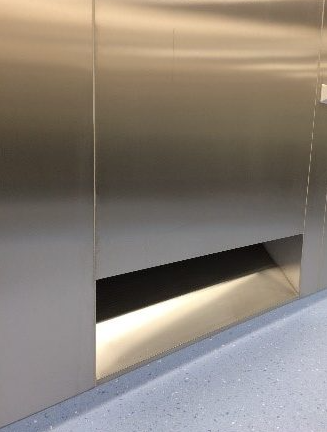

Full floor sweep (front part of wall hanging above floor, no sloped finish)
Easy Replaceable air return filter
Glass air return wall with a hinged panel on one side for cleaning
