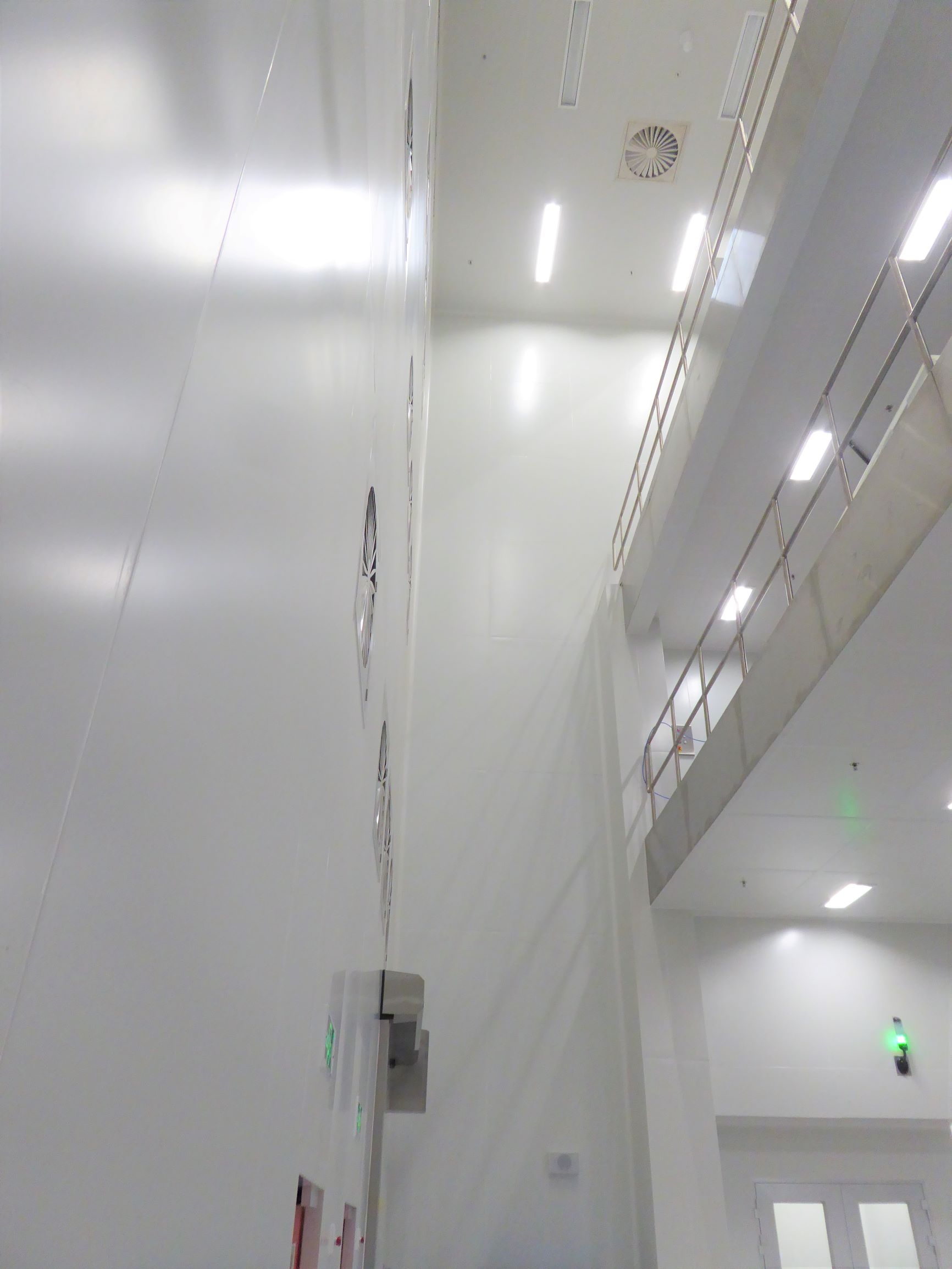

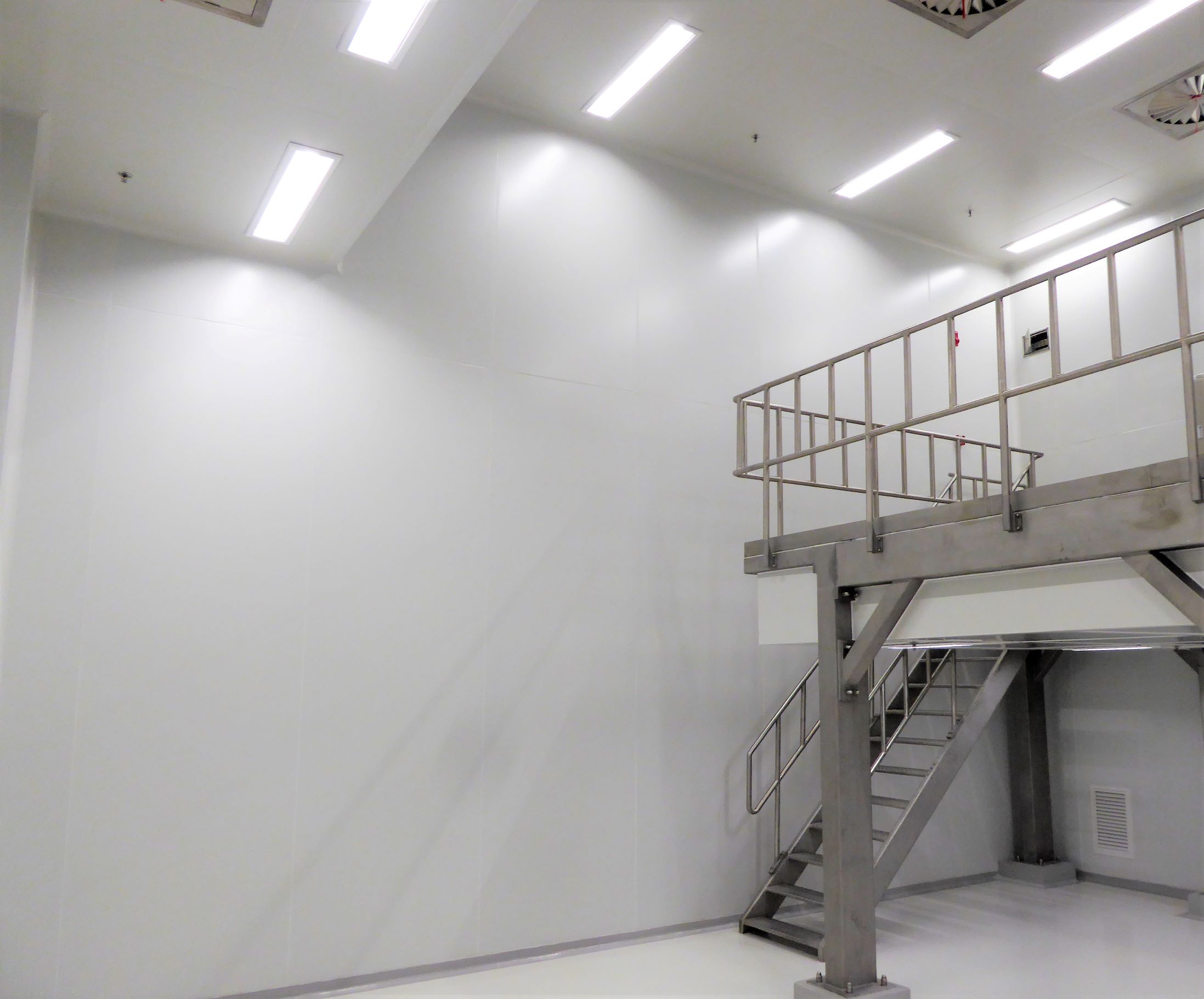

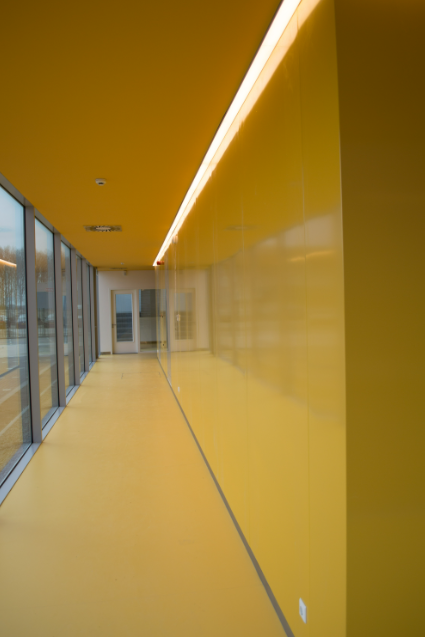

The KCS Tulip sandwich wall system is a lightweight completely flush sandwich wall system.
The hidden connections to floor tracks and ceiling create a fully flush surface wall with minimum silicone lines . The double floor tracks underneath absorb floor height differences up to 40mm. Each Tulip sandwich wall panels have all around integrated aluminum double-teeth profiling creating a strong and firm wall. Piping and cabling can be integrated in each wall panel by prefabricated cable trays.
Light weight panels
Fully Flush system
Fast cost friendly installation
Integrated cable tray for electrics and piping
easy to combine with other KCS wall systems
| Surface: | High resistant coated steel Various surface options available |
| Filling panel: | Aluminum Honey comb or Rockwool |
| Width: | Module size 1200mm Any size available |
| Height: | Up to 4 meter per panel Any size available |
| Thickness | 60mm or 100mm |
| Weight: (panel Th: 60 mm) | Alu Honeycomb 11 kg/m² Rockwool 18 kg/m² |
Various surface options available (stainless steel/VHP resistant)
Integrated cable tray for piping and electrics
Round coving
Service hatches
