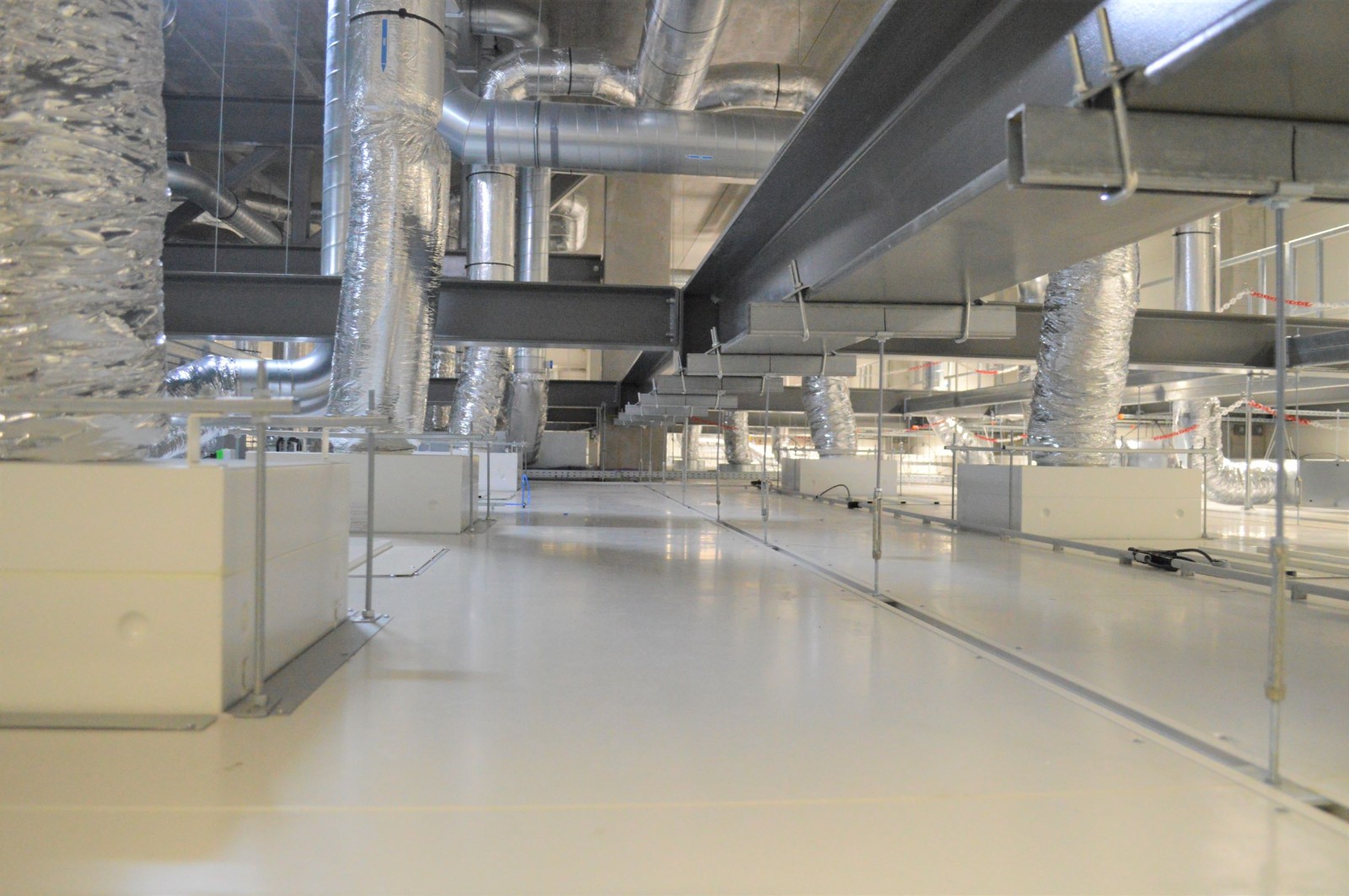

DFM (Double Flush Modular) walkable ceiling is a system with visible 100mm grids to carry the ceiling panels into a fully flush surface. The profiled ceiling panels fit in the counter profile of the grid which creates a flush surface on both sides of ceiling.
DFM is recognized as high stable and rigid ceiling system keeping this stability when openings are made. DFM system can easily absorb bigger openings in ceilings by using the grid as boarder lines preventing cutting and adjustments at project execution.
The lightweight grid system with integrated frame in each panel provides maximum support and creates optimal stability and durable quality.
FEATURES
PE-coated
steel panel with integrated aluminum profile
Aluminum
hanging grid fully flush on top and bottom of ceiling
Integrated
aluminum frame in each panel for maximum stability
Fast
installation and maintenance free
Air
tight sealed with slim silicone connection
Flexible
in location of openings
| Surface: | High resistant coated steel Various surface options available |
| Panel core: | -Aluminum Honey comb Rockwool core possible |
| Panel size: | Module: 1200x2400x60mm (WxHxT) Any size available |
| Load capacity: | 150kg/m2 Possible to increase up to 250kg/m2 |
Other steel surfaces available (stainless steel/VHP resistant)
Inprint openings for fully flush Lights and inletboxes
Integrated lights with Flush walk on plates (Bioled-Pro)
Service hatch with rubber seal flush built in
Integrated acoustic ceiling panels with flush walk on plates
